| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | TENGTIAN |
| ได้รับการรับรอง: | CE ISO9000 BV |
| หมายเลขรุ่น: | สส.60 |
| Attribute | Value |
|---|---|
| Production Name | High Frequency Welded Pipe Mill Line Control By CNC Steel Pipe Making Machine |
| Model | SS 60 |
| Feature | High precision and good stability |
| Max size | 1.8 X 60 mm |
| Thickness | 0.4 - 1.8 mm |
| Length | 6 - 8 m |
| Warranty | One year |

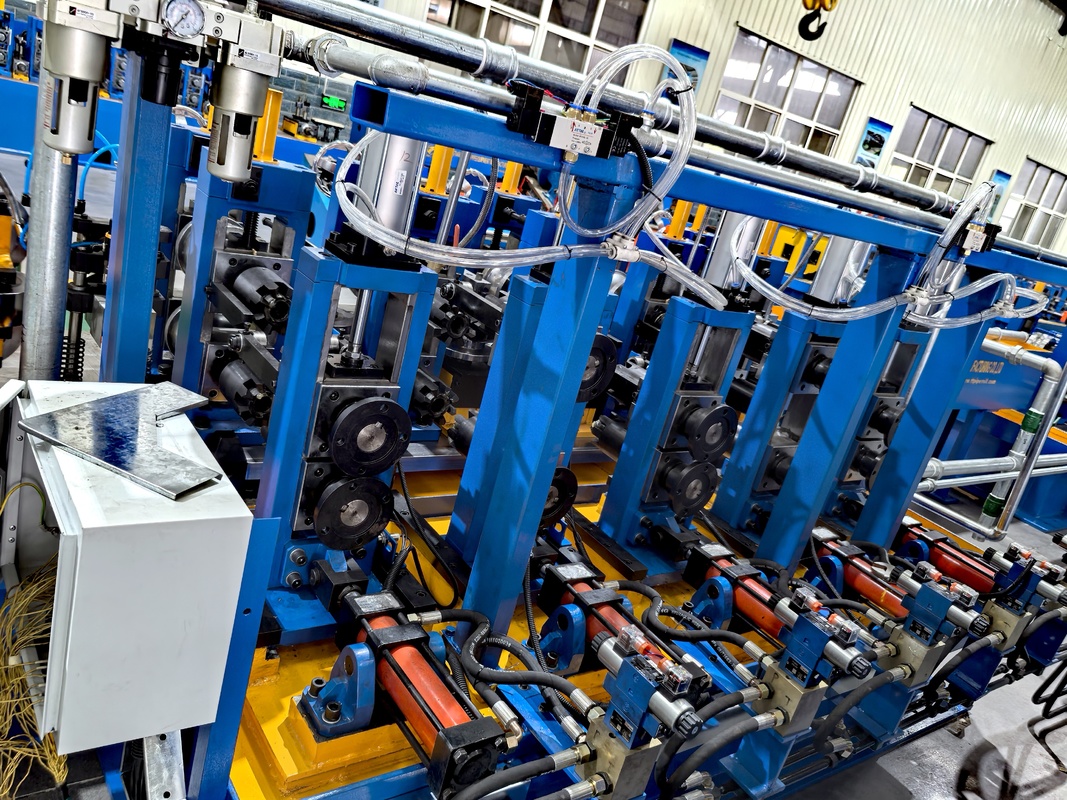

The high-frequency welded pipe production line is designed for manufacturing electric welded stainless steel pipes with diameters of Φ12-Φ60mm and wall thicknesses of 0.4-1.8mm. This CNC-controlled steel pipe making machine delivers exceptional precision and stability, with main components processed by CNC machining centers to ensure superior product quality.
| Material | Carbon Steel |
| Mechanical properties | δs≤500Mpa δb≤235Mpa |
| Strip Width | 36-190mm |
| Strip Thickness | 0.4-1.8mm |
| Inner Diameter of Coils | Φ460-Φ520mm |
| Outer Diameter of Coils | Φ1200-Φ1800mm |
| Coil Weight | 2.5T |
| Pipe Diameter | Round pipe: φ12-φ60mm |
| Thickness | 0.4-1.8mm |
| Length | 6-8m |
| Pipe-cutting Precision | ±1.5mm |
| Forming Speed | 20-120m/min |
